HaulPass Family

HaulPass E10g

A 10 Gbps E-Band millimeter wave link spanning up to 10 kilometers.

10 Gbps

Full-duplex fiber-to-radio

10 km

Point-to-point range (6.2 miles)

45 W

Power draw via PoE++ or 48 VDC

4 kg

Weight (8.8 lbs), 26.3 cm diameter

Advanced E-Band wireless technology

Two operating modes, one compact radio

The flexible E10g operates as 2 x 1.25 Gbps Ethernet connectivity with a fully integrated Ethernet switch (2.5 Gbps aggregate throughput), or as 10 Gbps direct fiber-to-radio connectivity for maximum throughput and minimum latency. It provides 100 MHz to 2 GHz channel bandwidth, advanced intelligence, and comprehensive Ethernet switching functionality, with integrated low-latency forward error correction (< 10 µs).

  • 2 x 1.25 Gbps Ethernet and 10 Gbps fiber wireless link
  • Lightly licensed E-Band millimeter wave operation
  • Up to 10 km (6.2 miles) point-to-point range
  • Small, lightweight footprint
  • Available with 1' or 2' antenna
  • Low power requirements via PoE++ or standard 48 VDC
  • Hitless adaptive coding, modulation and baud rate
  • Intelligent AGC for maximum network throughput
  • SNMP v2.0 with private MIB and radio MIB

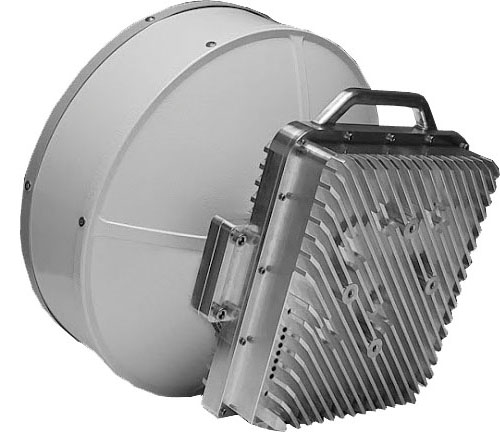

HaulPass E10g E-Band millimeter wave radio with antenna

Future-proof

Built on patented Modular Integrated Waveguide technology

Thanks to our Adaptive Code Modulation and Baud (ACMB) technology, the E10g's code rate, modulation and baud are instantly set in real time, resulting in hitless adjustment to link conditions. This advanced feature maintains critical traffic transport even in the most adverse weather conditions. Immediate ROI is achieved thanks to an economic price point and rapid, pain-free deployment.

Literature

Download HaulPass E10g literature
